Barrier¶

Barrier is used to synchronize processes during collective communication. It does this by making sure that each step has a barrier that no rank can pass until all ranks finish the same step. Once it does ranks are allowed to progress to the next step. See the diagram below:

from mpi4py import MPI
from time import sleep
import random

comm = MPI.COMM_WORLD
rank = comm.Get_rank()


if rank == 0:
    sleep(2)
    print("head finished sleeping")

comm.Barrier()

sleep(random.uniform(0, 2))
print(rank, 'finished sleeping ')

comm.Barrier()

if rank == 0:
    print("All done!")

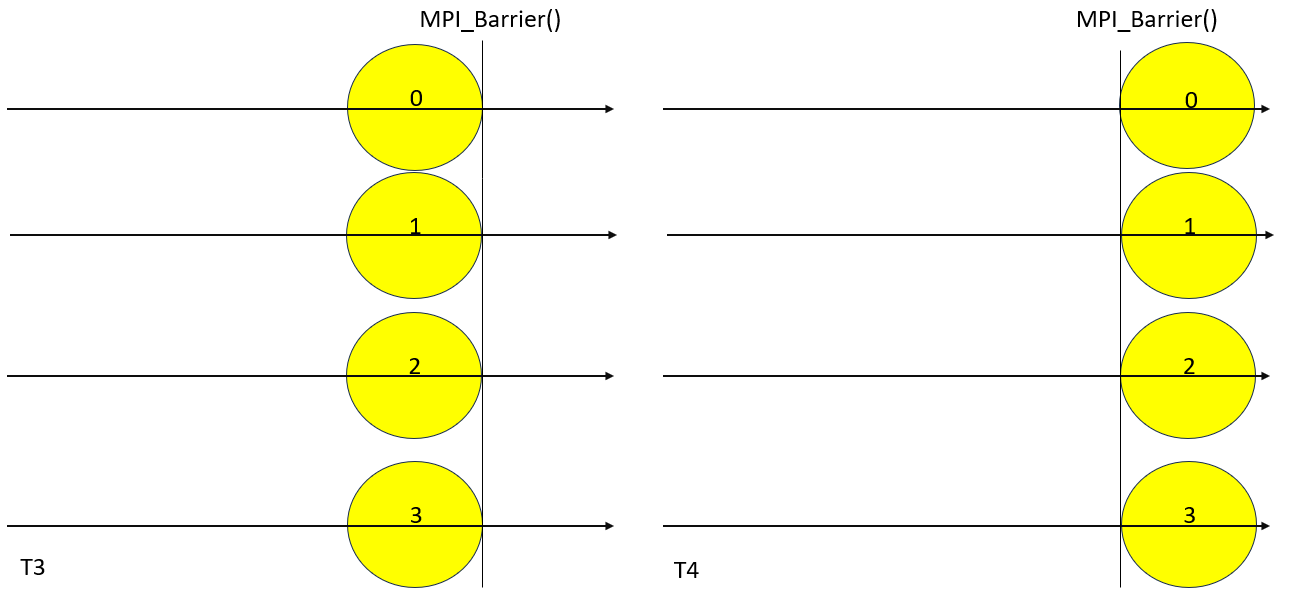

Consider the image above where ranks 0 is ahead of ranks 1-3 at T1. At T2, this changes with ranks 1 also reaching the barrier.

Now in T3, all the ranks have reached the barrier, only after which they cross it as indicated in T4.
